Pavlo GorkunSingle Thyristor Module TZ150N26KOF (150A 2600V) Infineon Replacement
Single Thyristor Module AMTZ150N26KOF AS ENERGITM is a replacement, analogue, alternative and equivalent for thyristor module TZ150N26KOF Infineon Technologies. Average forward current ITAV – 150 ampere, repetitive peak reverse voltage VRRM – 2600V.
The thyristor modules are characterized by high electrical and thermal cycling capability, meaning high reliability and long lifetime in intensive operation modes. The thyristor modules are housed in a industry-standard housing making it easy to integrate the device into existing equipment.
Single thyristor modules are used in various power equipment - power and control units, power regulators, AC regulators, DC motors control, AC motor soft starters, converters, controllers of blast furnaces or chemical processes, welding equipment, and as rectifiers for AC converters.
Our modules are offered in several dual and single device topologies for almost all phase control or rectifier applications.
The technical specifications and parameters of TZ150N26KOF and replacement AMTZ150N26KOF, datasheet PDF, outline drawing and dimensions are listed below.
Our company provides a quality guarantee for thyristor modules of 2 years from the date of purchase. When supplying thyristor modules, if necessary, we provide technical passport and certificate of conformity.
The final price for thyristor modules depends on the class, quantity, delivery terms, manufacturer, country of origin and form of payment.
General specifications of Single Thyristor Module TZ150N26KOF Infineon and Replacement:
| Single Thyristor module specifications | TZ150N26KOF | |
| Maximum allowable average on-state current (Case temperature) | ITAV | 150 A |
| Repetitive pulsed reverse voltage; Repetitive pulsed closed state voltage | VRRM/VDRM | 2600 V |
| Surge on-state current | ITSM | 4000 A |
| Safety factor | I2t | 101 kA2·s |
| Threshold voltage | VT(TO) | 1,20 V |
| On-state slope resistance | rT | 2,3 mΩ |
| Junction temperature | Tvj max | 125 ºC |
| Thermal resistance, junction to case | Rth(j-c) | 0,13 K/W |
| Design (switches) | - | single component |
| Weight | W | 900 g |
| Package Dimensions, mm |
L×B×H | TP50.1 101x50x52 |
| Replacement AS ENERGITM | type | AMTZ150N26KOF |
| Datasheet |  |
|
Part Numbering Guide for Single Thyristor Module TZ150N26KOF Infineon and Replacement:
| A | M | TZ | 150 | N | 26 | K | O | F |
| A | – |  AS ENERGITM |
| M | – | Product group: Module. |
| TZ | – | Circuit topology: Single Thyristor. |
| 150 | – | Average on-state current IT(AV), Amp. |
| N | – | Phase control device. |
| 26 | – | Voltage class VRRM / 100. |
| K | – | Mechanical construction: K – pressure contact technology S – solder technology |
| O | – | Turn off time tq: no guaranteed. |
| F | – | Critical rise of off-state dv/dt class: F = 1000 V/μs |

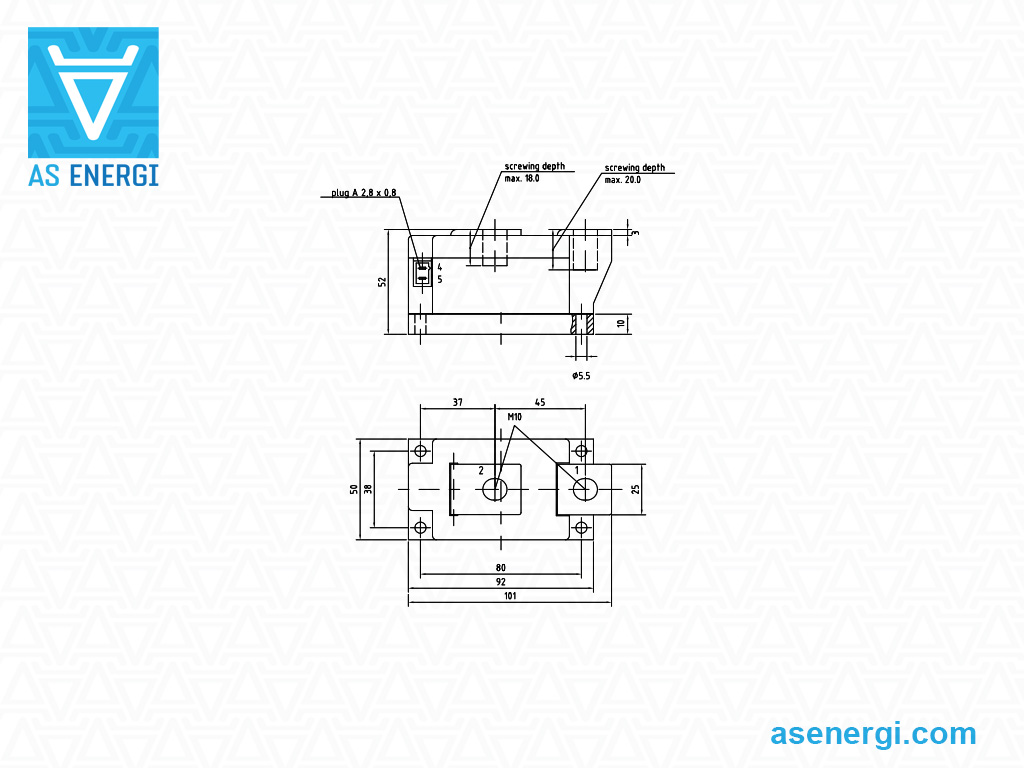

Dimensions of Single Thyristor Module TZ150N26KOF and Replacement AMTZ150N26KOF:
Single Thyristor Module
Circuit diagram of Single Thyristor Module TZ150N26KOF and Replacement AMTZ150N26KOF:
|
|
