Air Cooling Heatsink O371 for stud SCR thyristor & rectifier diode

Applicable stud with metric thread M20x1.5
Applies to devices for current 200A - 400A
Power dissipation 50 W
Mounting torque Md, ±10% 50 N·m
Heatsink O371 on request
+
Добавить
Dimensions B×L×H 45×80×80 mm
Weight 0.420 kg

Air Cooling Heatsinks O371-80 AS ENERGITM are used for single-sided cooling of power semiconductor devices in stud design with metric ISO thread M20x1.5. Applied device housing type: SD6, ST6.

Heatsink is used for cooling of power SCR thyristors and rectifier diodes for currents 200A - 400A. The power dissipation of the cooler with natural cooling is 50 W.

Airflow cooling can be natural or forced, depending on the amount of heat generated and the operating conditions of the semiconductors.

Features: corrosion-resistant aluminum alloy; low thermal resistance; easy installation with a mounting slot; can be either standard models can also be customizing.

Heat sinks are made of aluminum radiator profiles and do not require additional protective coating when used in different climatic conditions.

For minimum electrical losses and maximum heat dissipation of the devices, the appropriate torque Md specified in the power device specifications must be observed.

Before mounting the contact surfaces of the heatsink, current contact and semiconductor device should be wiped with a cloth soaked in alcohol (toluene, benzene, acetone) and it is recommended to lubricate with a thin layer of silicone-organic heat transfer paste (this is a recommendation and is not a prerequisite for installation).

Current range of stud type SCR thyristors and rectifier diodes for which air heat sinks (coolers, radiators) are used: 200A, 250A, 300A, 320A, 350A, 400A.

Specifications and parameters, dimensions, outlines and drawings of air-cooled heat sink (radiator) are listed below.

Our company provides a quality guarantee for air cooling heatsink of 2 years from the date of purchase. When supplying heatsinks, if necessary, we provide technical passport.

Read more

The final price of air cooling heatsink depends on the quantity, delivery terms, manufacturer, country of origin and form of payment.

Air Cooling Heatsink O371 specifications:

Heatsink specifications O371 (O371-80)
Applicable stud with metric thread M20x1.5
Power dissipation with natural cooling (PF) 50 W
Thermal resistance Rth(h-a) (natural cooling) 1.90 °C/W
Thermal resistance Rth(h-a) (forced cooling, airflow Vcfh=6 m/s) 0.67 °C/W
Flow resistance ΔPh 15 Pa
Mounting torque Md, ±10% 50 N·m
Cooling surface area 635.406 cm2
Weight (without power contact) 0.420 kg
Outline, dimensions B×L×H 45×80×80 mm
Applies to devices for current 200A - 400A
Application package type SD6, ST6
Application diode, thyristor type D161, DL161, T161, TS161, TS261, TF261

Overall and mounting dimensions of the heat sink O371:

Heatsink dimensions

Part Numbering Guide for Air Cooling Heatsinks O371:

O 3 7 1 80
O Product group: Heatsinks for semiconductors.
3 Serial number of heatsink design modification.
7 Series coding by mounting thread diameter for stud type heatsinks.
1 Serial number of the heatsink design modification for devices: 1 - stud mount version.
80 Length of the heatsink, mm.

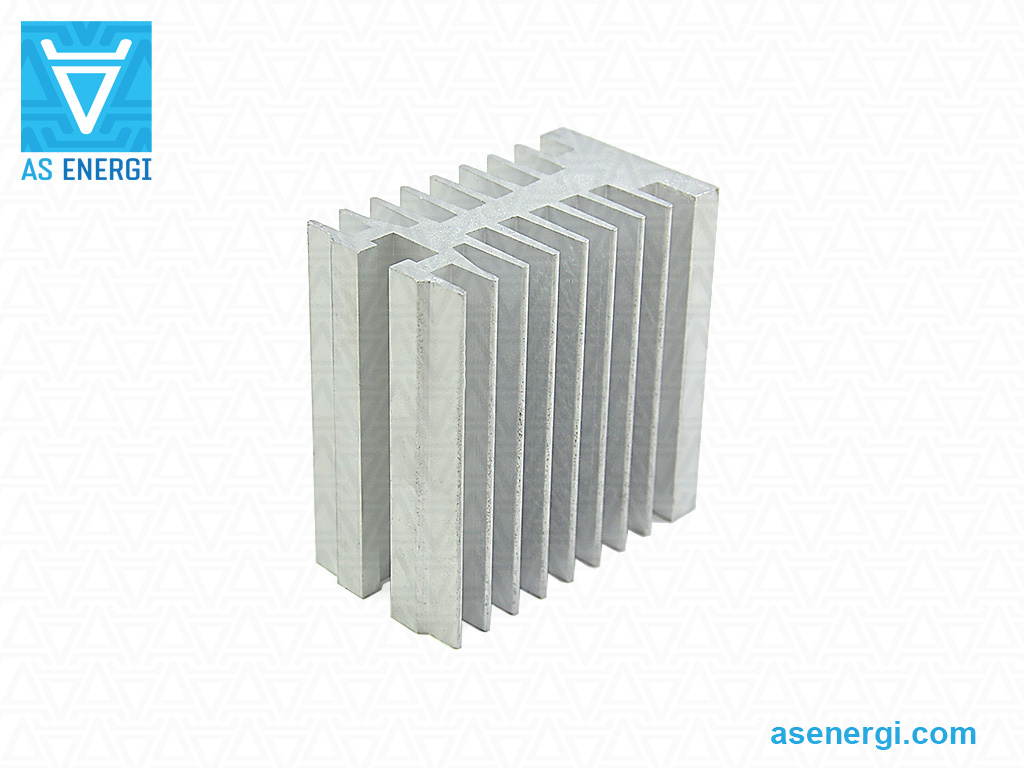

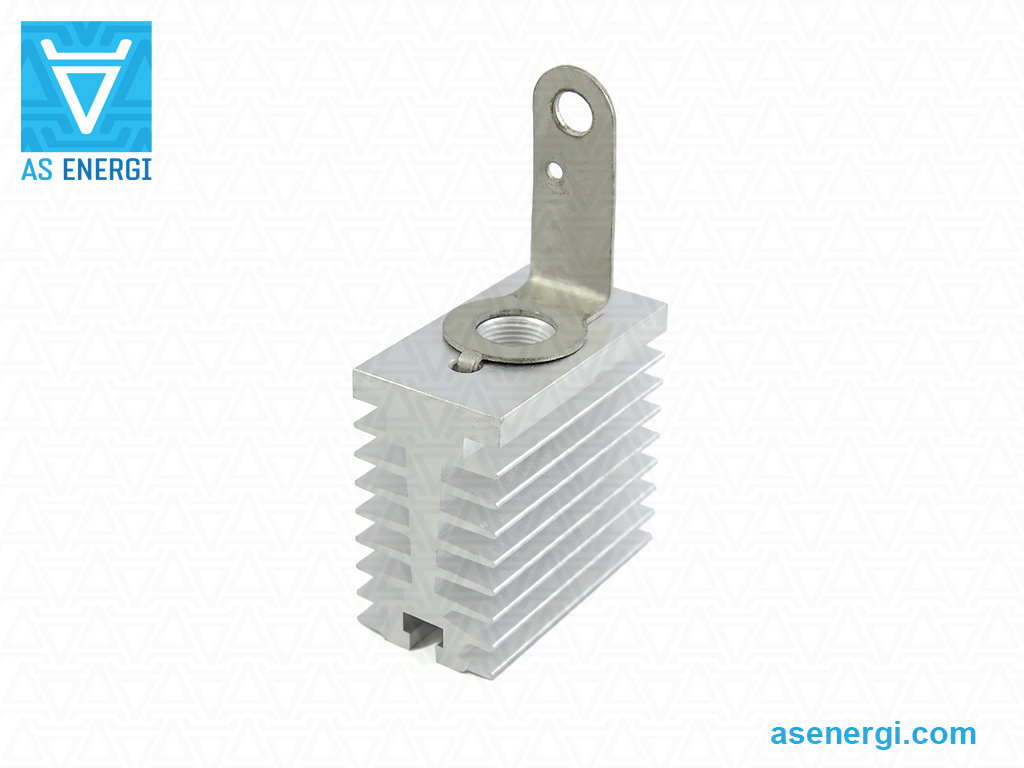

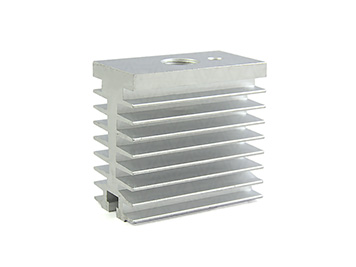

Photo of Air Cooling Heatsinks O371 for stud type semiconductors:


High Power Semiconductors AS ENERGITM

Our company is engaged in the manufacturer and sale of wide range of power semiconductors (power thyristors, modules, rectifier diodes, avalanche, rotor and welding diodes, triacs etc.) currents up to 15000A and voltages to 9000V, and air and water heatsinks to them.
You can buy semiconductor devices in any volumes, and when ordering large lots, the price will be lower. We have earned the trust of customers and supply products all over the world.

For questions regarding the acquisition of Power Thyristors, Diodes, Modules send an email request to:

[email protected]

And we will provide you a commercial offer for delivery.
For a large number, we will provide an individual price!!!

We are open to manufacture products at our production facilities
according to your requests and technical task.


Photo Gallery

The photo gallery shows many different semiconductor devices, semiconductor chips and SCRs produced by AS ENERGITM, examples of test reports.

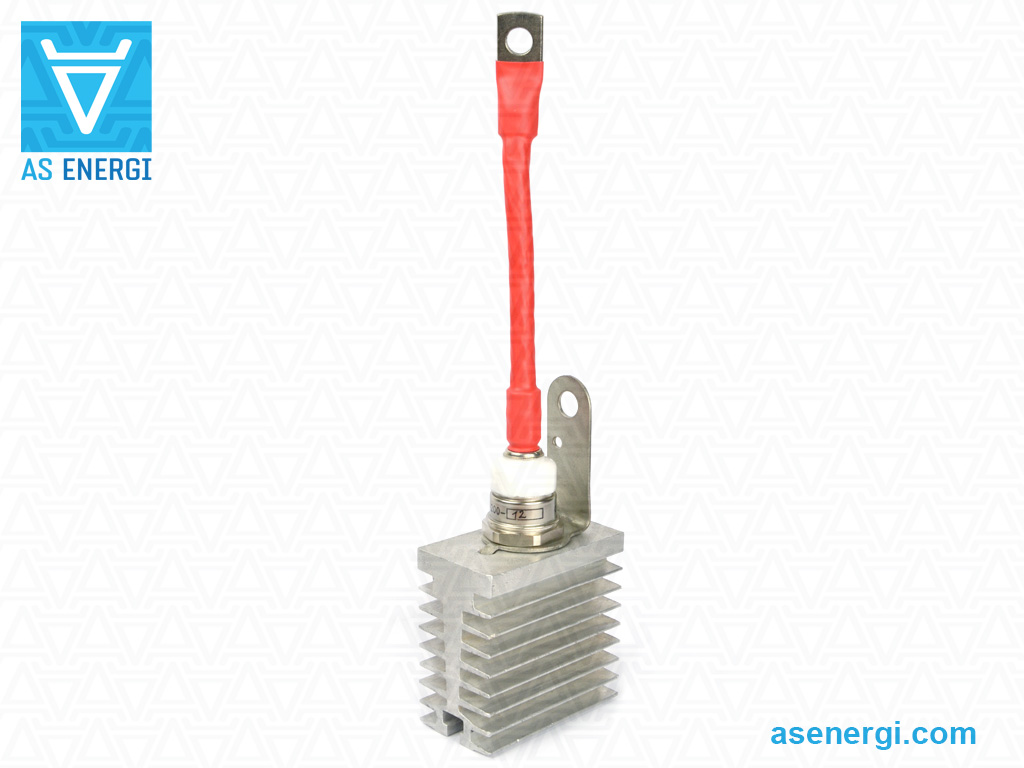

Recommendations for assembling a stud thyristor with an air heatsink:

Assembling stud thyristor with a heatsink

The reliability of heat transfer and electrical contact between the mating surfaces of the thyristor and the cooler over the entire temperature range is ensured by appropriate torque.

Before assembly you should perform visual inspection (1) contact surfaces for mechanical damages and wipe (2), soaked with alcohol (toluene, gasoline, acetone).

To improve the parameters of heat transfer it is recommended to lubricate (3) a thin layer of silicone thermal conductive paste before the assembly (this is a recommendation and is not a prerequisite for installation).

After installation, the fasteners (nuts and washers) must be additionally secured against corrosion.



Tips and recommendations for power thyristors:

The power thyristors should not be operated for long periods of time at their limit load for all parameters. In this case, the safety factor is determined by the required degree of reliability of the device.

Replace a failed power thyristor with a thyristor that matches the parameters of the one being replaced.

Supercooling must be provided when operating in an environment with an elevated ambient temperature.

Periodic cleaning of power thyristors and coolers to remove dust and contaminants is recommended to ensure proper heat dissipation.

Inductive current dividers (often twisted toroidal wire) should be used to equalize currents between power thyristors connected in parallel. The most popular connection methods are closed circuit, common coil circuit, or power thyristor. The efficiency of current dividers in this case is determined by the cross section of the magnetic wire.

Prevention of voltage unbalance when power thyristors are connected in series is achieved by using shunt resistors connected in parallel with each thyristor. Voltage equalization in transient conditions is provided by connecting capacitors in parallel to each thyristor.

Device under voltage

It is strictly forbidden to touch power thyristors under high voltage during operation.
