Standard Recovery Diode VS-150KR40A, Stud Type, Vishay Replacement
Vishay Part Number | VS-150KR40A |
Average forward current, IF(AV)M (TC) | 150A (150ºC) |
Voltage, VRRM | 400 V |
Stud thread | 3/8"-24UNF-2A |
Datasheet | |
Replacement AS ENERGITM | ASDS150KR40A |
Add to Cart | on request |
Rectifier Diode ASDS150KR40A AS ENERGITM in stud design, is a replacement, analogue, alternative and equivalent semiconductor device for normal recovery diode VS-150KR40A Vishay Semiconductors.
Average forward current IFAV – 150 ampere, repetitive peak reverse voltage VRRM – 400V. "Air-cooled heatsinks O series for stud devices" for diode cooling are also available to order.
Air and water heat sinks are used to cool the diodes. To provide reliable thermal and electrical contact with the heatsink a tightening torque Md must be observed during assembly. For better heat dissipation of diode during assembly, heat conducting paste is used (this is a recommendation and is not a prerequisite for installation).
Features of Standard Recovery Diodes: optimised for line frequency; low on-state losses; high reverse voltage and high current handling capabilities; press pack standard ceramic housing; designed for high power industrial and power transmission applications. Their main applications are rectifiers for large AC drives, aluminum smelting and other metal refining as well as trackside supply.
Rectifier Diodes AS ENERGITM have the following features: industry standard housing; low static and dynamic losses, high values of VRRM/VRSM, extensive experience of using the devices in various industries, range of voltages from 100 to 9000 V and amperages from 10 to 15000 A, high resistance to thermal and electric cycling.

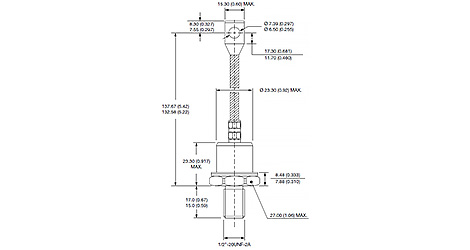

The technical specifications and parameters of VS-150KR40A and replacement ASDS150KR40A, datasheet PDF, outline drawing and dimensions are listed below.
Our company provides a quality guarantee for diodes of 2 years from the date of purchase. When supplying diodes, if necessary, we provide technical passport and certificate of conformity.
The final price for standard recovery diodes in stud design depends on the voltage class, quantity, delivery terms, manufacturer, country of origin and form of payment.
General specifications of Standard Recovery Diode (Stud Type) Vishay and Replacement:
Diode specifications | VS-150KR40A | |
Maximum allowable average forward current (Case temperature) | IF(AV)M (TC) | 150 A (150ºC) |
Max. repetitive peak reverse blocking voltage | VRRM | 400 V |
Surge peak forward current | IFSM | 3570 A |
Safety factor | I2t | 64 kA2·s |
Threshold voltage | VF(T0) | 0.83 V |
Forward slope resistance | rT | 0.91 mΩ |
Temperature of p-n junction | Tvj max | 200 ºC |
Thermal resistance, junction to case | Rth(j-c) | 0.023 K/kW |
Mounting torque, non-lubricated threads | Md± 10 % | 14.1 Nm |
Weight | W | 100 g |
Package (Housing) | type | DO-8 (DO-205AA) |
Stud thread | Ød | 3/8"-24UNF-2A |
Replacement AS ENERGITM | type | ASDS150KR40A |
Datasheet |
Part Numbering Guide for Standard Recovery Diodes:
AS | DS | 15 | 0 | K | R | 40 | A |
AS | – | AS ENERGITM |
DS | – | Product group: Diode Stud. |
15 | – | Essential part number. |
0 | – | Standard device. |
K | – | Case style: B-42. |
R | – | R = stud reverse polarity (anode to stud) None = stud normal polarity (cathode to stud). |
40 | – | Voltage code x 10 = VRRM. |
A | – | Essential part number. |
High Power Semiconductors AS ENERGITM
Our company is engaged in the manufacturer and sale of wide range of power semiconductors (power diodes, modules, rectifier diodes, avalanche, rotor and welding diodes, triacs etc.) currents up to 15000A and voltages to 9000V, and air and water heatsinks to them.
You can buy semiconductor devices in any volumes, and when ordering large lots, the price will be lower. We have earned the trust of customers and supply products all over the world.
For questions regarding the acquisition of Power Thyristors, Diodes, Modules send an email request to:
And we will provide you a commercial offer for delivery.
For a large number, we will provide an individual price!!!
We are open to manufacture products at our production facilities
according to your requests and technical task.
Photo Gallery
The photo gallery shows many different semiconductor devices, semiconductor chips and SCRs produced by AS ENERGITM, examples of test reports.
Heat sinks for power stud diodes:
Heat sinks (radiators) are used for cooling of power semiconductor devices in stud design.
Heat sinks of coolers are made of aluminum radiator profiles and do not require additional protective coating when used in various climatic conditions.
See for more information about heatsinks: "Air-cooled heatsinks for stud devices".
